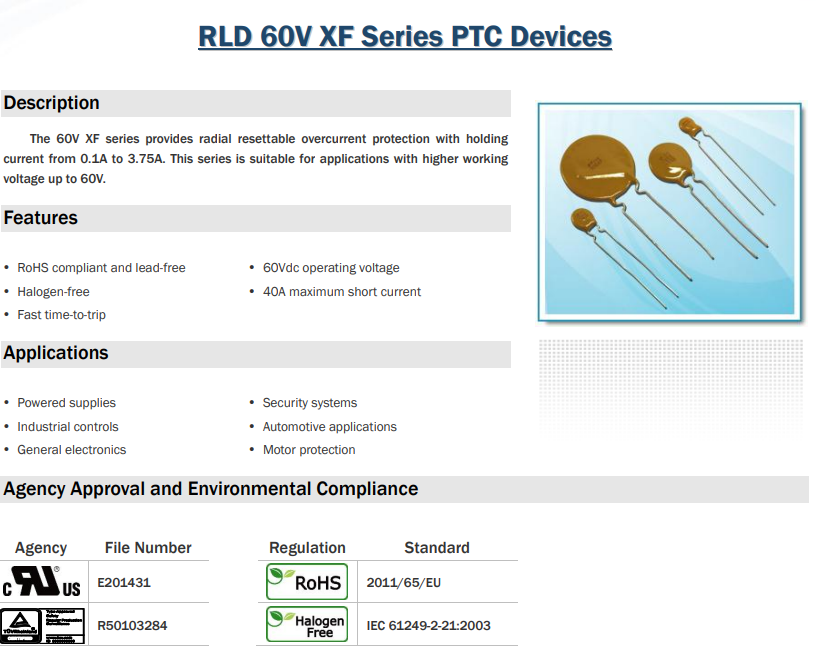

60V XF Series

RLD60P005XF 0.05 0.12 60 40 0.22 0.25 5.0 7.30 20.0

RLD60P010XF 0.10 0.20 60 40 0.38 0.50 4.0 2.50 7.50 P P

RLD60P017XF 0.17 0.34 60 40 0.48 0.85 3.0 2.00 8.00 P P

RLD60P020XF 0.20 0.40 60 40 0.41 1.00 2.2 1.83 4.40 P P

RLD60P025XF 0.25 0.50 60 40 0.45 1.25 2.5 1.25 3.00 P P

RLD60P030XF 0.30 0.60 60 40 0.49 1.50 3.0 0.88 2.10 P P

RLD60P040XF 0.40 0.80 60 40 0.56 2.00 3.8 0.55 1.29 P P

RLD60P050XF 0.50 1.00 60 40 0.77 2.50 4.0 0.50 1.17 P P

RLD60P065XF 0.65 1.30 60 40 0.88 3.25 5.3 0.31 0.72 P P

RLD60P075XF 0.75 1.50 60 40 0.92 3.75 6.3 0.25 0.60 P P

RLD60P090XF 0.90 1.80 60 40 0.99 4.50 7.2 0.20 0.47 P P

RLD60P110XF 1.10 2.20 60 40 1.50 5.50 8.2 0.15 0.38 P P

RLD60P135XF 1.35 2.70 60 40 1.70 6.75 9.6 0.12 0.30 P P

RLD60P185XF 1.85 3.70 60 40 2.10 9.25 12.6 0.08 0.19 P P

RLD60P250XF 2.50 5.00 60 40 2.50 12.50 15.6 0.05 0.13 P P

RLD60P300XF 3.00 6.00 60 40 2.80 15.00 19.8 0.04 0.10 P P

RLD60P375XF 3.75 7.50 60 40 3.20 18.75 24.0 0.03 0.08 P P

RLD60P005XF 0.09 0.08 0.06 0.05 0.04 0.03 0.03 0.02 0.01

RLD60P010XF 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.04

RLD60P017XF 0.26 0.23 0.20 0.17 0.14 0.12 0.11 0.09 0.07

RLD60P020XF 0.31 0.27 0.24 0.20 0.16 0.14 0.13 0.11 0.08

RLD60P025XF 0.39 0.34 0.30 0.25 0.20 0.18 0.16 0.14 0.10

RLD60P030XF 0.47 0.41 0.36 0.30 0.24 0.22 0.19 0.16 0.12

RLD60P040XF 0.62 0.54 0.48 0.40 0.32 0.29 0.25 0.22 0.16

RLD60P050XF 0.78 0.68 0.60 0.50 0.41 0.36 0.32 0.27 0.20

RLD60P065XF 1.01 0.88 0.77 0.65 0.53 0.47 0.41 0.35 0.26

RLD60P075XF 1.16 1.02 0.89 0.75 0.61 0.54 0.47 0.41 0.30

RLD60P090XF 1.40 1.22 1.07 0.90 0.73 0.65 0.57 0.49 0.36

RLD60P110XF 1.71 1.50 1.31 1.10 0.89 0.79 0.69 0.59 0.44

RLD60P135XF 2.09 1.84 1.61 1.35 1.09 0.97 0.85 0.73 0.54

RLD60P160XF 2.48 2.18 1.90 1.60 1.30 1.15 1.01 0.86 0.64

RLD60P185XF 2.87 2.52 2.20 1.85 1.50 1.33 1.17 1.00 0.74

RLD60P250XF 3.88 3.40 2.98 2.50 2.03 1.80 1.58 1.35 1.00

RLD60P300XF 4.65 4.08 3.57 3.00 2.43 2.16 1.89 1.62 1.20

RLD60P375XF 5.81 5.10 4.46 3.75 3.04 2.70 2.36 2.03 1.50

RLD60P005XF 7.4 11.6 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P005XF-S 7.4 7.6 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P010XF 7.4 11.6 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P010XF-S 7.4 7.6 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P017XF 7.4 12.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P017XF-S 7.4 8.7 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P020XF 7.4 12.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P020XF-S 7.4 8.7 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P025XF 7.4 12.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P025XF-S 7.4 8.7 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P030XF 7.4 13.4 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P030XF-S 7.4 9.4 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P040XF 7.6 13.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P040XF-S 7.6 9.7 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P050XF 7.9 13.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P050XF-S 7.9 9.7 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P065XF 9.4 15.2 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P065XF-S 9.4 11.2 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P075XF 10.2 16.0 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P075XF-S 10.2 12.0 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P090XF 11.2 16.7 5.1±0.7 7.6 3.1 1.2 1 0.51

RLD60P090XF-S 11.2 13.3 5.1±0.7 7.6 3.1 1.2 2 0.51

RLD60P110XF 12.8 18.0 5.1±0.7 7.6 3.1 1.4 1 0.81

RLD60P110XF-S 12.8 14.6 5.1±0.7 7.6 3.1 1.4 2 0.81

RLD60P135XF 14.5 19.6 5.1±0.7 7.6 3.1 1.4 1 0.81

RLD60P135XF-S 14.5 16.2 5.1±0.7 7.6 3.1 1.4 2 0.81

RLD60P160XF 16.3 21.3 5.1±0.7 7.6 3.1 1.4 1 0.81

RLD60P160XF-S 16.3 18.0 5.1±0.7 7.6 3.1 1.4 2 0.81

RLD60P185XF 17.5 22.9 5.1±0.7 7.6 3.1 1.4 1 0.81

RLD60P185XF-S 17.5 19.4 5.1±0.7 7.6 3.1 1.4 2 0.81

RLD60P250XF 20.8 26.4 10.2±1.0 7.6 3.1 1.4 1 0.81

RLD60P250XF-S 20.8 22.4 10.2±1.0 7.6 3.1 1.4 2 0.81

RLD60P300XF 23.9 30.0 10.2±1.0 7.6 3.1 1.4 1 0.81

RLD60P300XF-S 23.9 26.0 10.2±1.0 7.6 3.1 1.4 2 0.81

RLD60P375XF 27.2 33.5 10.2±1.0 7.6 3.1 1.4 1 0.81

RLD60P375XF-S 27.2 29.5 10.2±1.0 7.6 3.1 1.4 2 0.81
